Spreader Beams

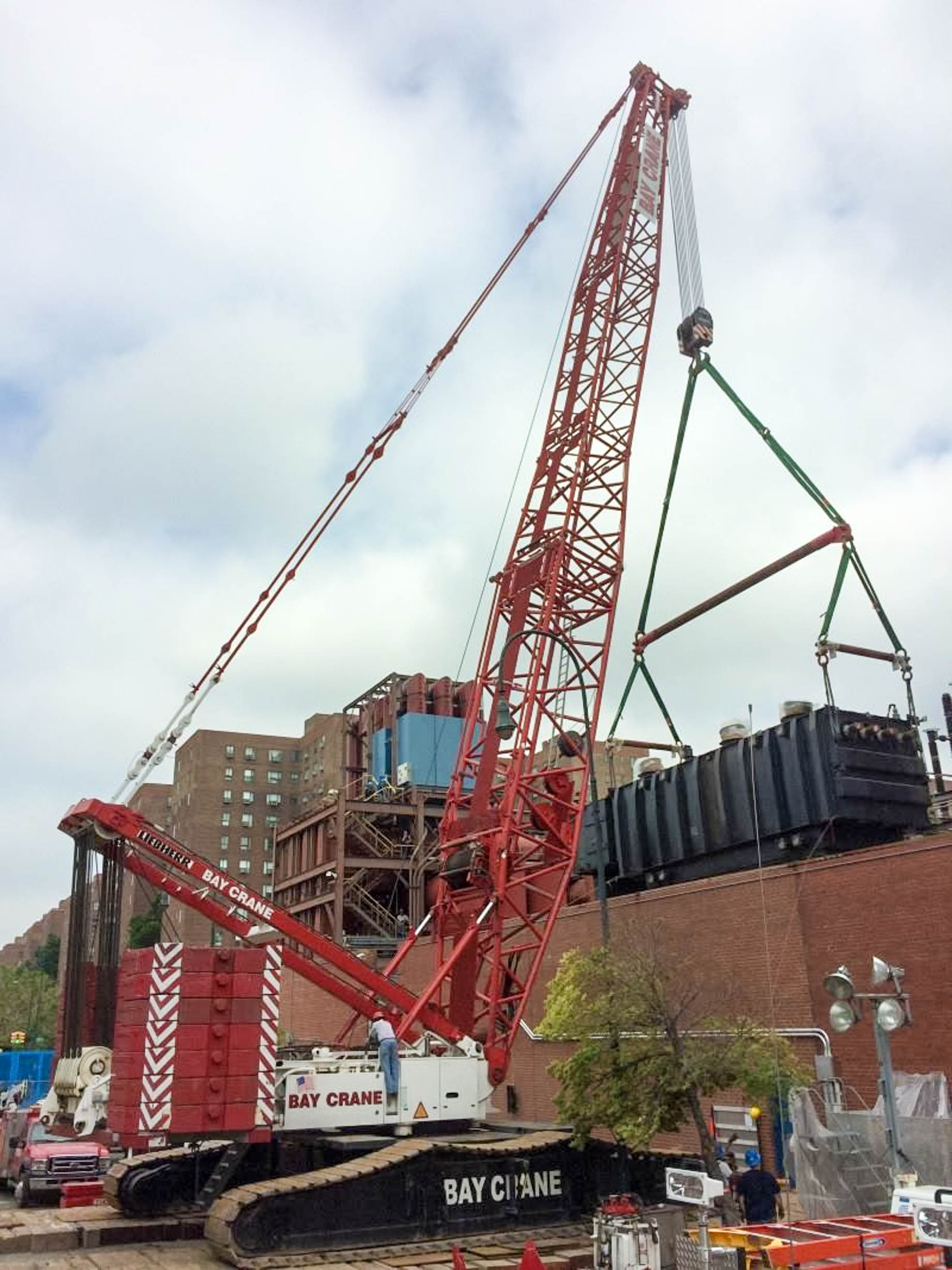

Spreader Beams, Lifting Beams, Load Transfer Systems. A spreader bar is a type of below-the-hook lifting device used to aid crane operators in picking up large and sometimes heavy loads. The idea behind a spreader bar is to simply distribute the load of a lift across more than one point, increasing stability and decreasing the loads applied during hoisting.
| Base Capacity | Type | End Weight | Approx. Insert Weight per Foot |
|---|---|---|---|

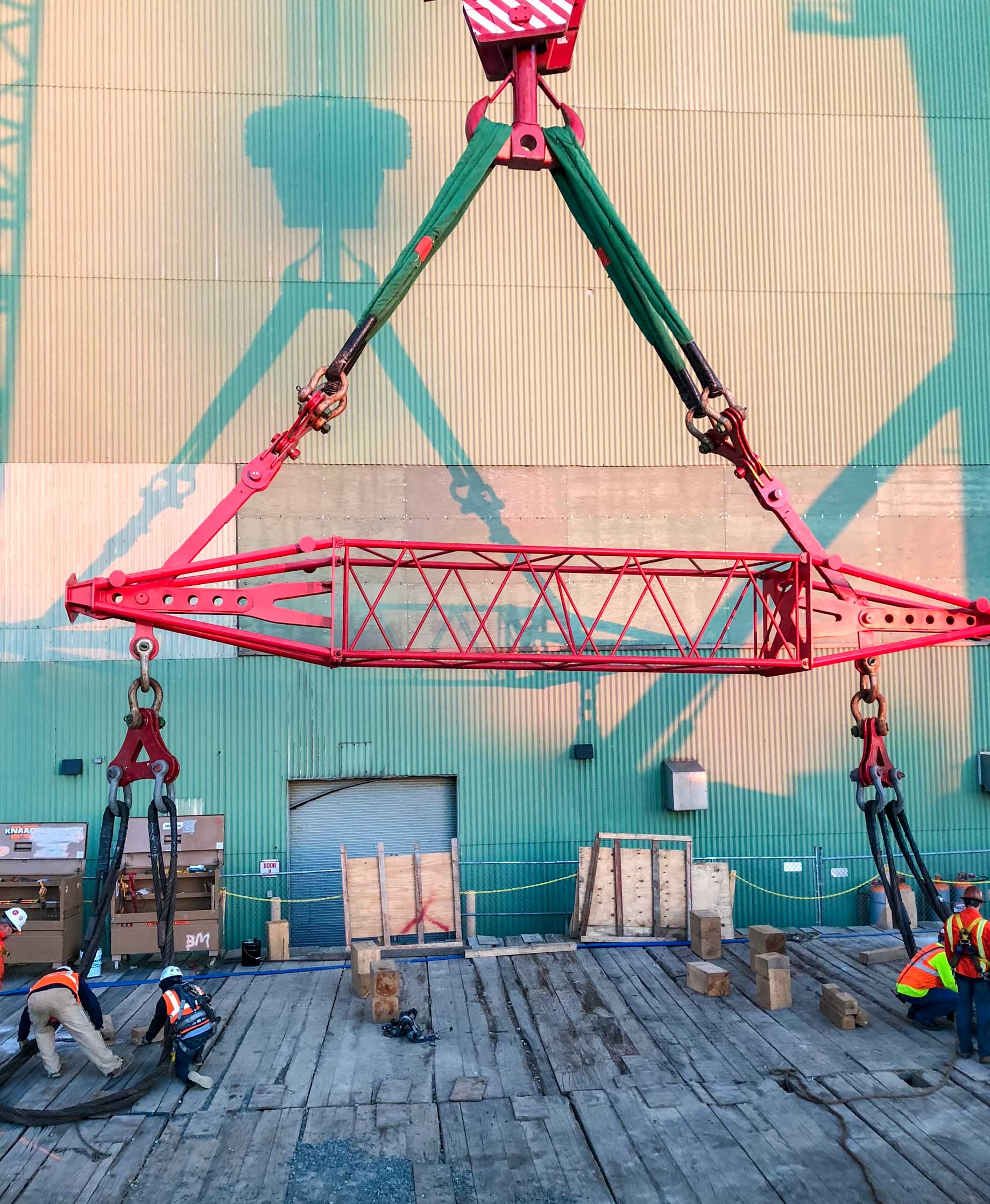

| 475t | Lattice | 4,350 lbs | 60 lbs |
| 350t | Pipe 18" | 1,250 lbs | 71 lbs |
| 250t | Lattice | 2,840 lbs | 60 lbs |
| 220t | Pipe 12" | 575 lbs | 50 lbs |
| 110t | Pipe 8" | 170 lbs | 30 lbs |
| 55t | Pipe | 106 lbs | |
| 25t | Pipe | ||
| 30/40t | Box Tube | ||
| 10t | 6" | ||
| Offset CG Spreader | |||
| Load Transfer Triangle | |||
